0.5mm Pitch Easy On Type H=5.2/H=5.4 with Buckle

0.5mm pitch 4.0mm height flat fpc connector, easy-on s/t positive pointer with buckle, flexible printed circuit board cable connector, high reliability, for communication and industrial use；0.5mm pitch, 5.4mm height, flexible printed circuit fpc connector, easy-on s/t positive pointer with buckle, slide lock, dual contact, high reliability.

Product Details

Specifications

Model	Diagram	Specification
0.5mm Pitch Easy On Type H=5.2 with Buckle		1、CKT: 5Pin to 80Pin 2、Current rating: 0. 5A AC/DC 3、Voltage rating(max): 50V， AC/DC 4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 5、Contact resistance: ≤50mΩ 6、Insulation resistance: ≥500MΩ 7、Withstand voltage: 150VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm
0.5mm Pitch Easy On Type H=5.4 with Buckle

Mounting Measurement

	Assembly Layout	Applicable Flat Cable	P.C.B Layout

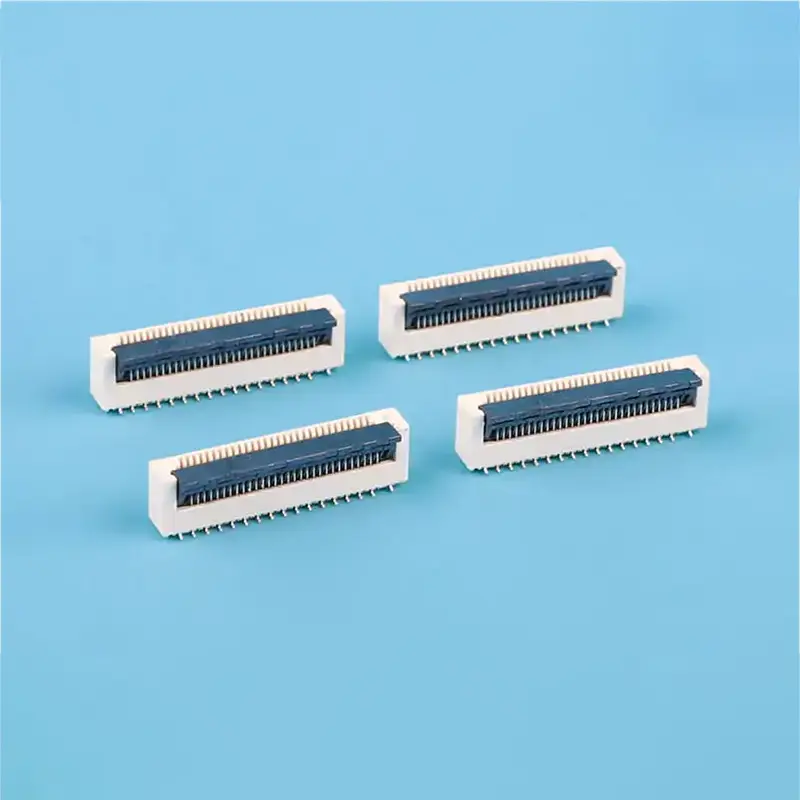

0.5mm Pitch Easy On Type H=5.2 with Buckle

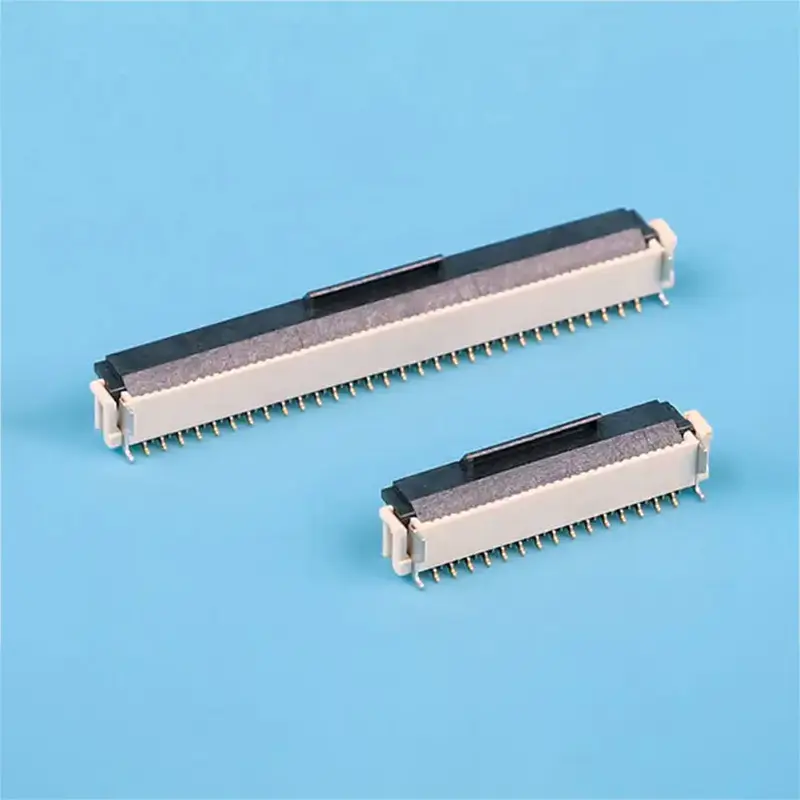

0.5mm Pitch Easy On Type H=5.4 with Buckle

Product description

Easy-on S/T Positive pointer With Buckle H=5.2

Material and Finish ：

Housing:L .CP UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

Finish:Tin-plated & Gold-plated

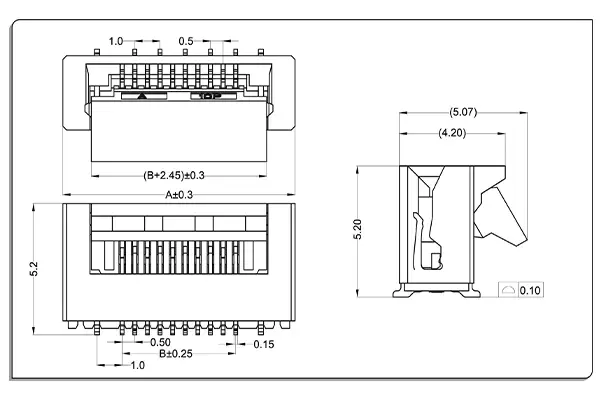

3.Product description.1.jpg

CKT	Part No	DIM A	DIM B
5	XL05523-05	6.7	2
6	XL05523-06	7.2	2.5
7	XL05523-07	7.7	3
8	XL05523-08	8.2	3.5
9	XL05523-09	8.7	4
10	XL05523-10	9.2	4.5
11	XL05523-11	9.7	5
12	XL05523-12	10.2	5.5
13	XL05523-13	10.7	6
14	XL05523-14	11.2	6.5
15	XL05523-15	11.7	7
-	-	-	-
80	XL05523-80	44.2	39.5

Easy-on S/T Positive pointer With Buckle H=5.4

Material and Finish ：

Housing:LCP UL94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

Finish:Tin-plated & Gold-plated

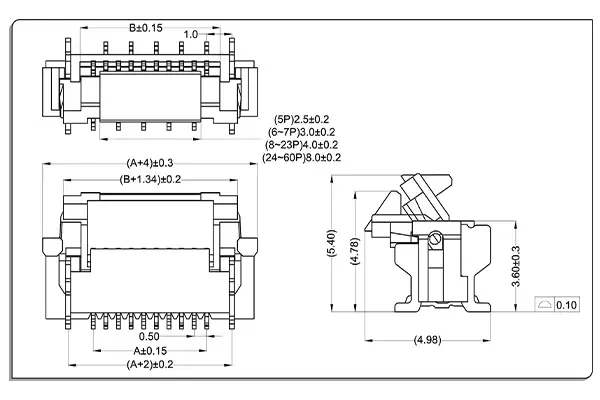

3.Product description.2.jpg

CKT	Part No	DIM A	DIM B
5	XL05543-05	2	3.06
6	XL05543-06	2.5	3.56
7	XL05543-07	3	4.06
8	XL05543-08	3.5	4.56
9	XL05543-09	4	5.06
10	XL05543-10	4.5	5.56
11	XL05543-11	5	6.06
12	XL05543-12	5.5	6.56
13	XL05543-13	6	7.06
14	XL05543-14	6.5	7.56
15	XL05543-15	7	8.06
-	-	-	-
60	XL05543-60	29.5	39.5
