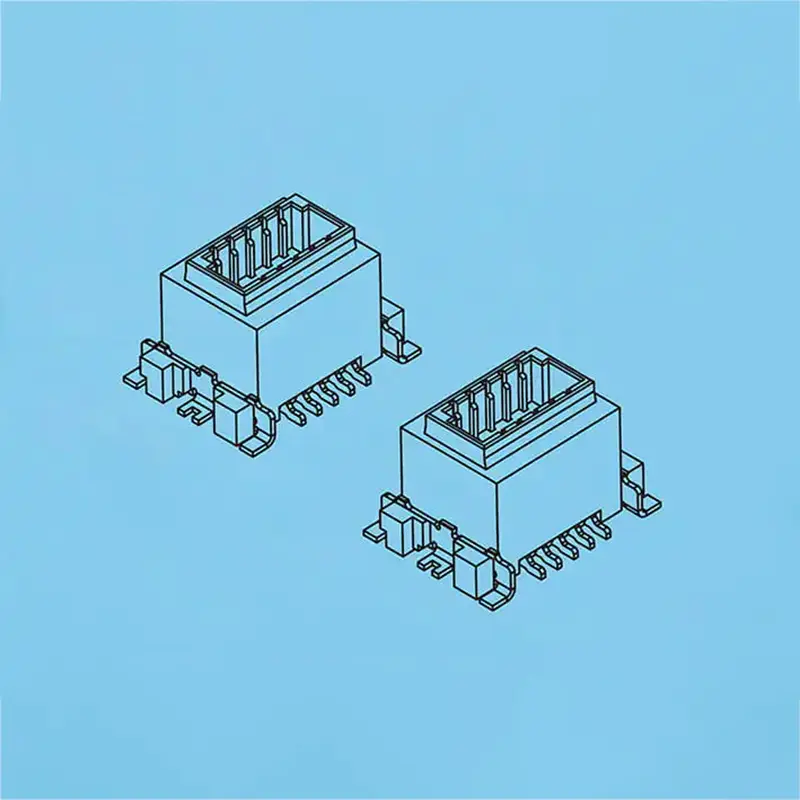

0.8-A Type Board-to-Board Connector

Product Features

1.Small Size: BTB board-to-board connectors use precision manufacturing technology, making them very compact and suitable for electronic devices with limited space.

2.Light Weight: Due to the use of lightweight materials and compact structural design, BTB board-to-board connectors are very lightweight, making installation and use convenient.

3.High Reliability: BTB board-to-board connectors use high-quality materials and advanced manufacturing processes, providing good durability and vibration resistance, and can maintain stable connections in harsh working environments.

4.High-Density Connection: BTB board-to-board connectors have multiple contact points, enabling high-density connections and improving the efficiency of signal transmission in circuits.

5.Low Impedance: BTB board-to-board connectors use optimized design and manufacturing processes to reduce contact resistance and insertion force, improving the stability and speed of signal transmission.

Specifications

Diagram	Specification
	1、CKT: 2*5Pin to 2*40Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 100V， AC/DC 4、Working Temperature: -25C~ +85C, (Including temperature rise in applying electrical current) 5、Contact resistance:value ≤20mΩ After environmental testing ≤40mΩ 6、Insulation resistance: ≥1000MΩ 7、Withstand voltage: 200VAC(rms) 8、Applicable PCB board thickness: 1.6mm to 2.0mm

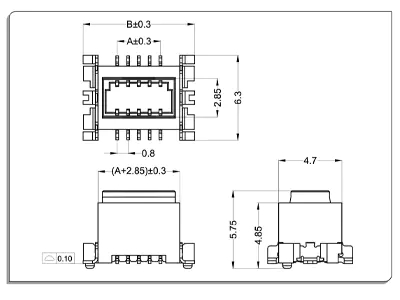

Mounting Measurement

Straight Angle

Product description

Wafer

Material and Finish ：

Housing:PA6T UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;

Finish: Tin-plated & Gold-plated
