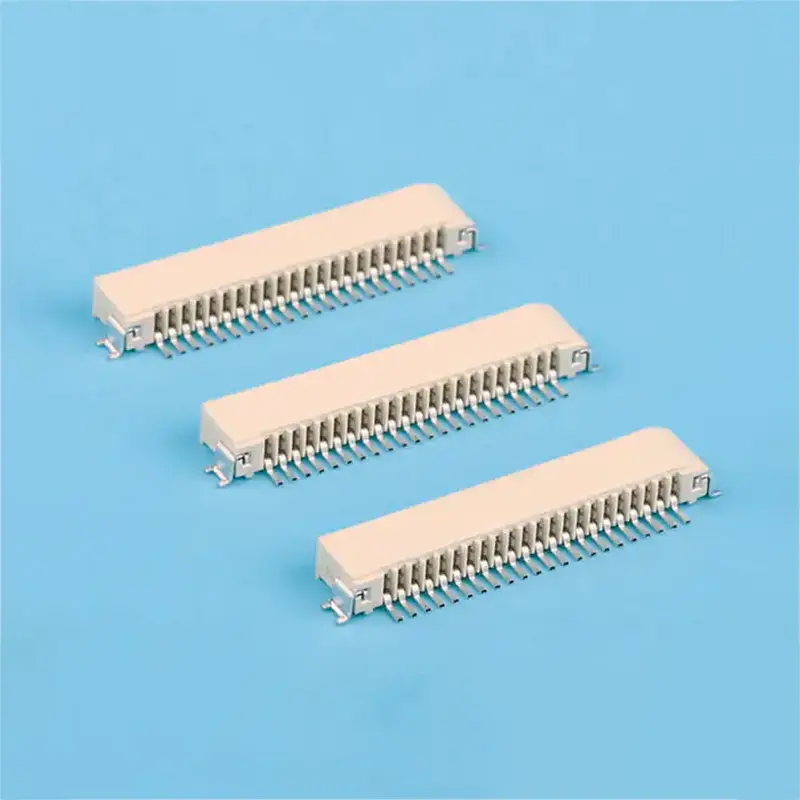

1.0mm Pitch Non-ZIF R/A Down Contact H=3.0
Product Overview
The 1.0mm Pitch FPC Flat Connector is a precision electronic component specifically engineered for high-density PCB applications. Featuring an innovative design that balances compact size (1.0mm pitch) with high performance, this connector is ideal for space-constrained modern electronic devices. Gold-plated contacts ensure superior conductivity and long-term reliability. The product is UL certified and complies with international electrical safety standards.
Application Fields
Widely used in:
Consumer electronics (smartphones, tablets, digital cameras)
Automotive electronic control systems
Medical electronic equipment
Industrial automation devices
LED display modules
Specifications
| Diagram | Specification |
|
1、CKT: 3Pin to 30Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85"C,(Including temperature rise in applying electrical current) 5、Contact resistance:value≤55mΩ 6、Insulation resistance: ≥500MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable PCB board thickness: 1 .6mm to 2.0mm |
Mounting Measurement
| Assembly Layout | Applicable Flat Cable | P.C.B Layout |
|
|
 |

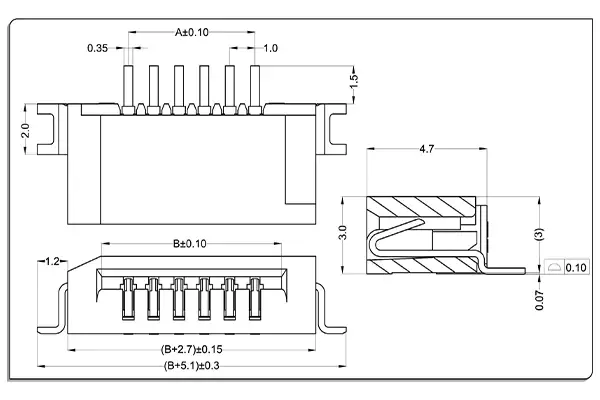

Product description
Non-ZlF R/A Down contact
Material and Finish ：
Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:phosphor bronze;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 3 | WW10302-03 | 3 | 4.1 |
| 4 | WW10302-04 | 4 | 5.1 |
| 5 | WW10302-05 | 5 | 6.1 |
| 6 | WW10302-06 | 6 | 7.1 |
| 7 | WW10302-07 | 7 | 8.1 |
| 8 | WW10302-08 | 8 | 9.1 |
| 9 | WW10302-09 | 9 | 10.1 |
| 10 | WW10302-10 | 10 | 11.1 |
| 11 | WW10302-11 | 11 | 12.1 |
| 12 | WW10302-12 | 12 | 13.1 |
| 13 | WW10302-13 | 13 | 14.1 |
| - | - | - | - |
| 30 | WW10302-30 | 29 | 31.1 |
