1.0mm Pitch And 1.25mm Pitch
0102030405
1.0mm Pitch ZIF R/A Type Upper/Down Contact H=2.5
Specifications
| Model | Diagram | Specification |
| 1.0mm Pitch ZIF R/A Type Upper Contact H=2.5 |
|
1、CKT: 4Pin to 40Pin 2、Current rating: 0.5A AC/DC 3、Voltage rating(max): 50V，AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance: Initial value≤30mΩ After environmental testing≤60mΩ 6、Insulation resistance: ≥500MΩ 7、Withstand voltage: 250VAC(rms) 8、Applicable PCB board thickness: 1 .6mm to 2.0mm |
| 1.0mm Pitch ZIF R/A Type Down Contact H=2.5 |
|
Mounting Measurement
|
|
Assembly Layout |
Applicable Flat Cable |
P.C.B Layout |
|

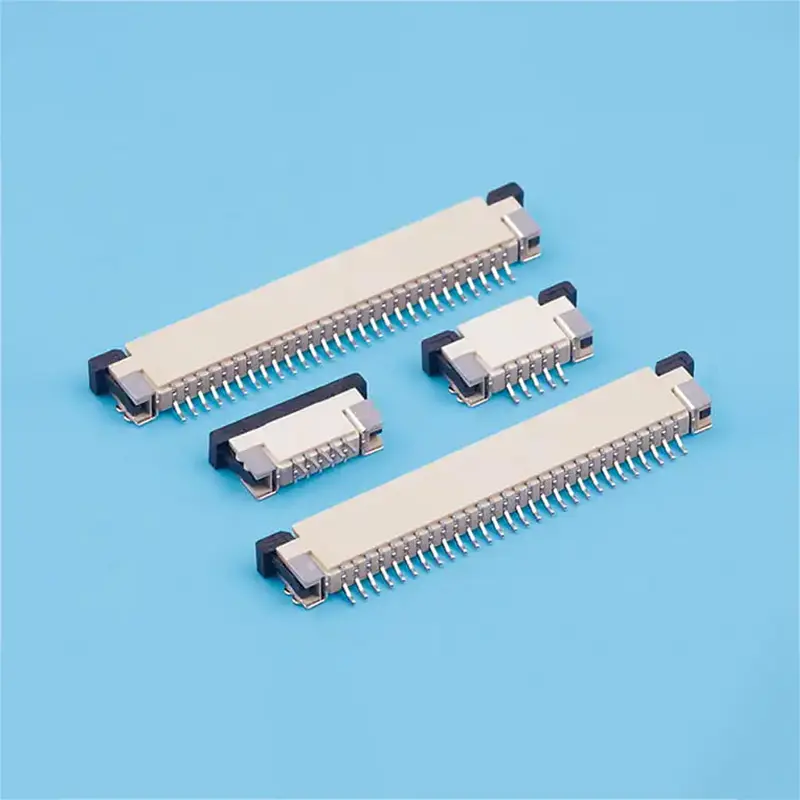

1.0mm Pitch ZIF R/A Type Upper Contact H=2.5 |
|
|
|
|

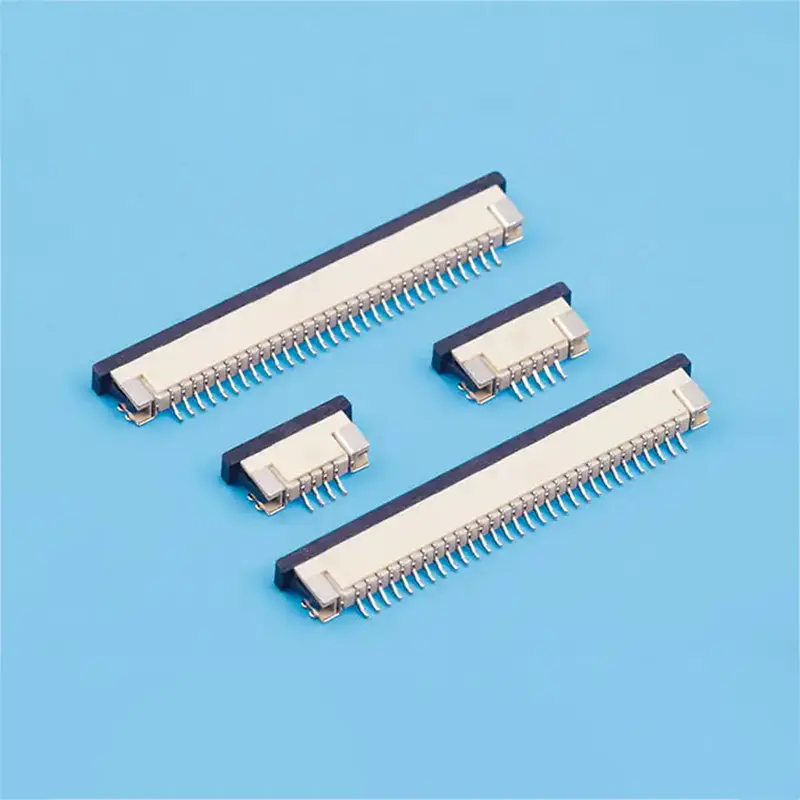

1.0mm Pitch ZIF R/A Type Down Contact H=2.5 |
|
|
 |

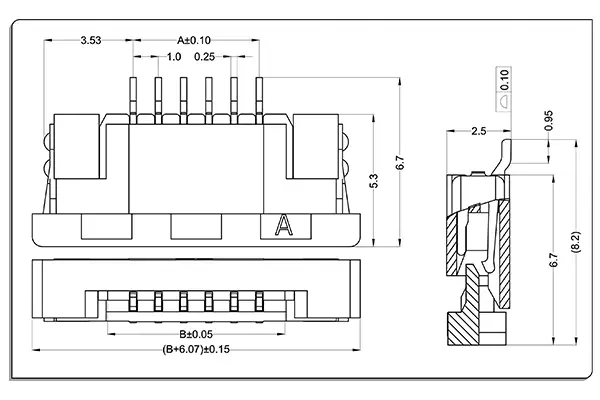

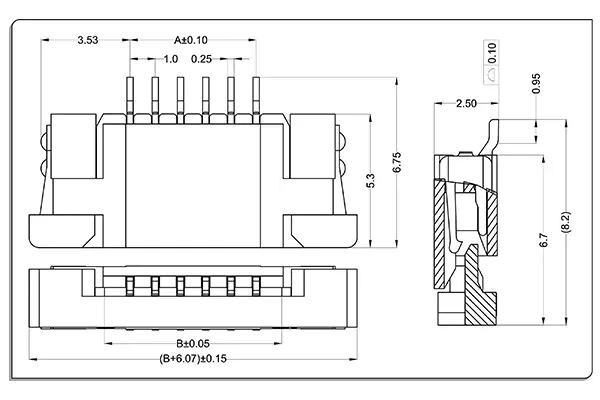

Product description
ZIF R/A Upper contact
Material and Finish ：
Housing:LCP UL 94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | LW10251-04 | 3 | 5.03 |
| 5 | LW10251-05 | 4 | 6.03 |
| 6 | LW10251-06 | 5 | 7.03 |
| 7 | LW10251-07 | 6 | 8.03 |
| 8 | LW10251-08 | 7 | 9.03 |
| 9 | LW10251-09 | 8 | 10.03 |
| 10 | LW10251-10 | 9 | 11.03 |
| 11 | LW10251-11 | 10 | 12.03 |
| 12 | LW10251-12 | 11 | 13.03 |
| 13 | LW10251-13 | 12 | 14.03 |
| 14 | LW10251-14 | 13 | 15.03 |
| 40 | LW10251-40 | 39 | 41.03 |
ZIF R/A Down contact
Material and Finish ：
Housing:LCP UL .94V-0 & Terminal:phosphor bronze & Fitting:Brass;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | LW10252-04 | 3 | 5.03 |
| 5 | LW10252-05 | 4 | 6.03 |
| 6 | LW10252-06 | 5 | 7.03 |
| 7 | LW10252-07 | 6 | 8.03 |
| 8 | LW10252-08 | 7 | 9.03 |
| 9 | LW10252-09 | 8 | 10.03 |
| 10 | LW10252-10 | 9 | 11.03 |
| 11 | LW10252-11 | 10 | 12.03 |
| 12 | LW10252-12 | 11 | 13.03 |
| 13 | LW10252-13 | 12 | 14.03 |
| 14 | LW10252-14 | 13 | 15.03 |
| - | - | - | - |
| 40 | LW10252-40 | 39 | 41.03 |
