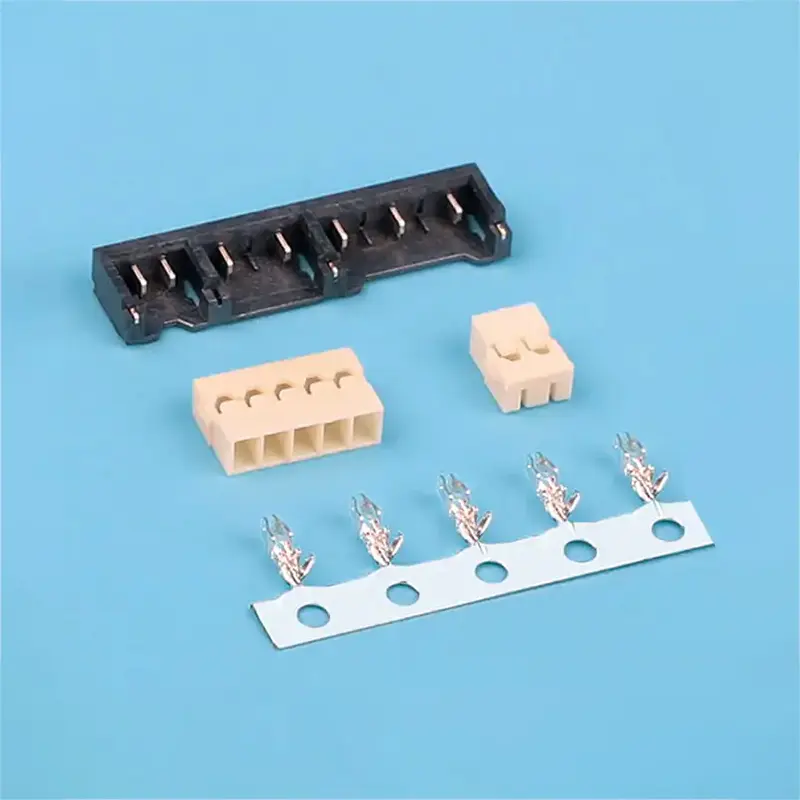

1.5A Type Battery Connector Holder
Specifications
| Diagram | Specification |
 |
1、CKT: 2Pin to 16Pin 2、Current rating: 1A AC/DC 3、Voltage rating(max): 100V， AC/DC 4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current) 5、Contact resistance: Initial value≤20mΩ After environmental testing≤40mΩ 6、Insulation resistance: ≥500MΩ 7、Withstand voltage: 500VAC(rms) 8、Applicable wire: AWG #30 to #26 9、Applicable PCB board thickness: 1.6mm to 2.0mm |
Mounting Measurement
| Right Angle | P.C.B Layout |
 |
 |
Product Parameter

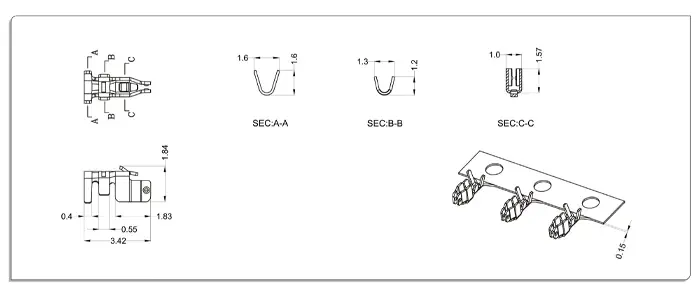

Terminal: T=0.15mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| DCT150A0- T0 | AWG#30~ #26 | 1.10mm MAX | phosphor bronze | Tin & Gold-plated |
Product description

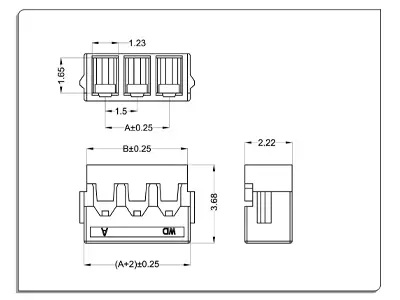

Housing
Material:
Nylon 66 UL 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | DCT150A0-02 | 1.5 | 3.22 |
| 3 | DCT150A0-03 | 3 | 4.72 |
| 4 | DCT150A0-04 | 4.5 | 6.22 |
| 5 | DCT150A0-05 | 6 | 7.72 |
| 6 | DCT150A0-06 | 7.5 | 9.22 |
| 7 | DCT150A0-07 | 9 | 10.72 |
| 8 | DCT150A0-08 | 10.5 | 12.22 |
| 9 | DCT150A0-09 | 12 | 13.72 |
| 10 | DCT150A0-10 | 13.5 | 15.22 |
| - | - | - | - |
| 16 | DCT150A0-16 | 22.5 | 24.22 |

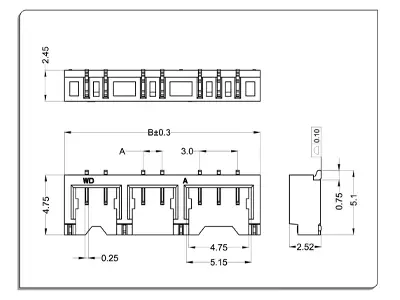

Wafer
Material and Finish:
Housing:LCP UL 94V-0 & Terminal:Brass Fitting:Brass;
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 7 | DCT150AW-07 | 1.5 | 15.5 |
