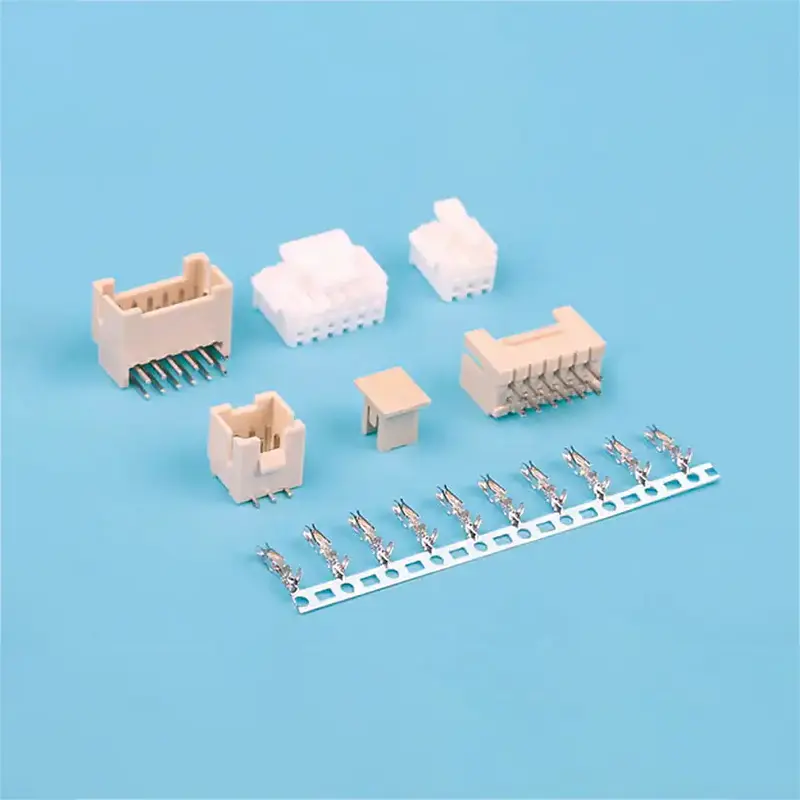

1.1 2.0-A Type(PHB) double row Wire-to-Board Connector.jpg

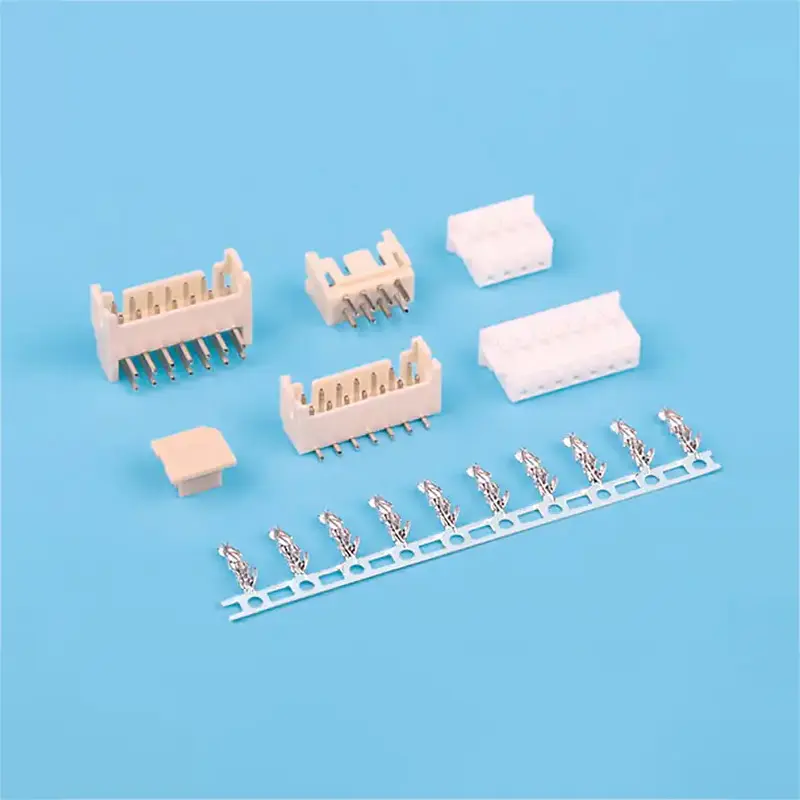

1.1 2.0-D Type(PHD) double row Wire-to-Board Connector.jpg

2.0-A Type(PHB)/D Type(PHD) double row Wire-to-Board Connector

2.0mm pitch wire-to-board connector kit, pcb mount, disconnectable crimp style connectors；2.0mm pitch wire-to-board strip connector kit, pcb mount, compact design, secure locking system, for industrial and commercial use.

    Contact us
    Product Details

    Specifications

    model Diagram Specification
    2.0-A Type(PHB) double row Wire-to-Board Connector   1、CKT: 2*2Pin to 2*22Pin
    2、Current rating: 3A AC/DC
    3、Voltage rating(max): 250V, AC/DC
    4、Working Temperature: -25°C~+85°C,
    (Including temperature rise in applying electrical current)
    5、Contact resistance: Initial value ≤20mΩ
    After environmental testing≤30mΩ
    6、Insulation resistance: ≥1000MΩ
    7、Withstand voltage:800VAC(rms)
    8、Applicable wire: AWG #28 to #24
    9、Applicable PCB board thickness: 1.6mm to 2.0mm
    2.0-D Type(PHD) double row Wire-to-Board Connector   1、CKT: 2*2Pin to 2*20Pin
    2、Current rating: 3A AC/DC
    3、Voltage rating(max): 250V, AC/IDC
    4、Working Temperature: -25°C~+85°C,
    (Including temperature rise in applying electrical current)
    5、Contact resistance: Initial value ≤20mΩ
    After environmental testing≤30mΩ
    6、Insulation resistance: ≥1000MΩ
    7、Withstand voltage:800VAC(ms)
    8、Applicable wire: AWG #28 to #22
    9、Applicable PCB board thickness: 1 .6mm to 2.0mm

    Mounting Measurement

      Straight Angle Right Angle
    2.0-A Type(PHB) double row Wire-to-Board Connector
    2.0-D Type(PHD) double row Wire-to-Board Connector

    Product Parameter

    2.0-A Type(PHB) Terminal: T=0.2mm

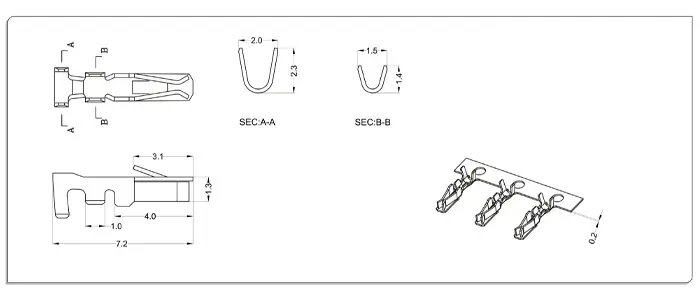

    4.Product Parameter.1.jpg

    Part No. Wire Range Insulation O.D Material Finish
    WB200A0-T0 AWG#28~ #24 1.20mm MAX phosphor bronze Tin & Gold-plated

    2.0-D Type(PHD) Terminal: T=0.2mm

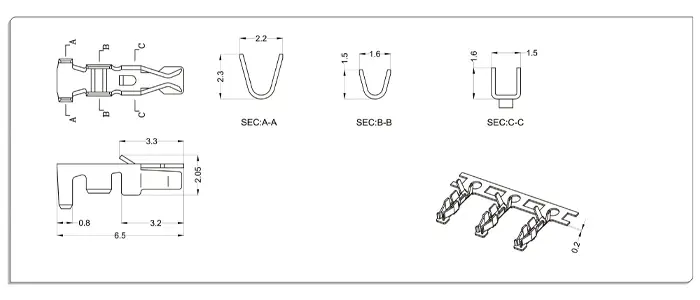

    4.Product Parameter.2.jpg

    Part No. Wire Range Insulation O.D Material Finish
    WB200R0-T0 AWG#28~ #22 1.50mm MAX phosphor bronze Tin & Gold-plated

    Product description

    2.0-A Type(PHB)

    Housing

    Material: Nylon 66 UL 94V-0

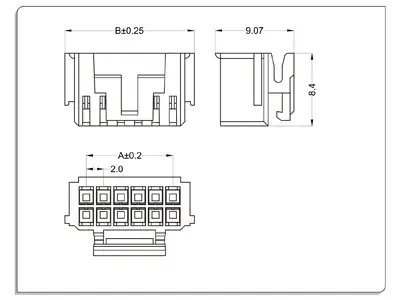

    5.Product description.1.jpg

    CKT Part No DIM A DIM B
    2*2 WB200A0-04 2 7
    2*3 WB200A0-06 4 9
    2*4 WB200A0-08 6 11
    2*5 WB200A0-10 8 13
    2*6 WB200A0-12 10 15
    2*7 WB200A0-14 12 17
    2*8 WB200A0-16 14 19
    2*9 WB200A0-18 16 21
    2*10 WB200A0-20 18 23
    2*11 WB200A0-22 20 25
    2*12 WB200A0-24 22 27
    - - - -
    2*22 WB200A0-44 42 47

    Wafer

    Material and Finish:

    Housing:LCP UL 94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated

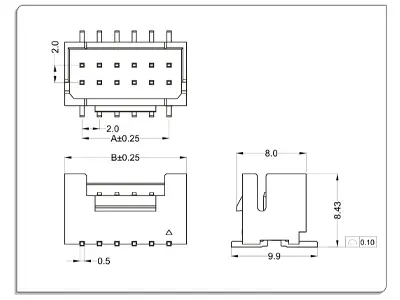

    5.Product description.2.jpg

    CKT Part No DIM A DIM B
    2*2 WB200AL-04 2 6
    2*3 WB200AL-06 4 8
    2*4 WB200AL-08 6 10
    2*5 WB200AL-10 8 12
    2*6 WB200AL-12 10 14
    2*7 WB200AL-14 12 16
    2*8 WB200AL-16 14 18
    2*9 WB200AL-18 16 20
    2*10 WB200AL-20 18 22
    2*11 WB200AL-22 20 24
    2*12 WB200AL-24 22 26
    - - - -
    2*22 WB200AL-44 42 46

    Material and Finish:

    Housing:LCP UL 94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated

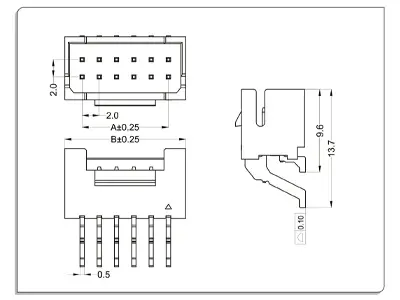

    5.Product description.3.jpg

    CKT Part No DIM A DIM B
    2*2 WB200AW-04 2 6
    2*3 WB200AW-06 4 8
    2*4 WB200AW-08 6 10
    2*5 WB200AW-10 8 12
    2*6 WB200AW-12 10 14
    2*7 WB200AW-14 12 16
    2*8 WB200AW-16 14 18
    2*9 WB200AW-18 16 20
    2*10 WB200AW-20 18 22
    2*11 WB200AW-22 20 24
    2*12 WB200AW-24 22 26
    - - - -
    2*16 WB200AW-40 30 34

    Housing

    Material: Nylon 66 UL 94V-0

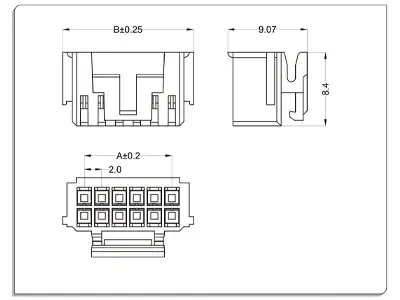

    5.Product description.4.jpg

    CKT Part No DIM A DIM B
    2*2 WB200A0-04 2 7
    2*3 WB200A0-06 4 9
    2*4 WB200A0-08 6 11
    2*5 WB200A0-10 8 13
    2*6 WB200A0-12 10 15
    2*7 WB200A0-14 12 17
    2*8 WB200A0-16 14 19
    2*9 WB200A0-18 16 21
    2*10 WB200A0-20 18 23
    2*11 WB200A0-22 20 25
    2*12 WB200A0-24 22 27
    - - - -
    2*22 WB200A0-44 42 47

    Wafer

    Material and Finish:

    Housing:PA46 UL94V-0 & Terminal:Brass Finish:Tin-plated & Gold-plated

    5.Product description.5.jpg

    CKT Part No DIM A DIM B
    2*2 WB200AL-04 2 6
    2*3 WB200AL-06 4 8
    2*4 WB200AL-08 6 10
    2*5 WB200AL-10 8 12
    2*6 WB200AL-12 10 14
    2*7 WB200AL-14 12 16
    2*8 WB200AL-16 14 18
    2*9 WB200AL-18 16 20
    2*10 WB200AL-20 18 22
    2*11 WB200AL-22 20 24
    2*12 WB200AL-24 22 26
    - - - -
    2*22 WB200AL-44 42 46

    Material and Finish:

    Housing:PA46 UL94V-0 & Terminal:Brass Finish： Tin-plated & Gold-plated

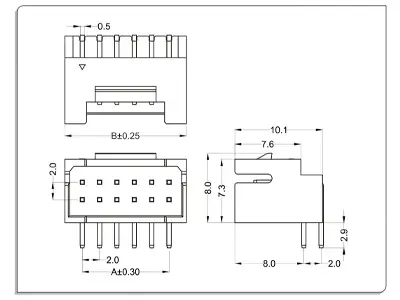

    5.Product description.6.jpg

    CKT

    Part No

    DIM A

    DIM B

    2*2

    WB200AW-04

    2

    6

    2*3

    WB200AW-06

    4

    8

    2*4

    WB200AW-08

    6

    10

    2*5

    WB200AW-10

    8

    12

    2*6

    WB200AW-12

    10

    14

    2*7

    WB200AW-14

    12

    16

    2*8

    WB200AW-16

    14

    18

    2*9

    WB200AW-18

    16

    20

    2*10

    WB200AW-20

    18

    22

    2*11

    WB200AW-22

    20

    24

    2*12

    WB200AW-24

    22

    26

    -

    -

    -

    -

    2*22

    WB200AW-44

    42

    		 46

    2.0-D Type(PHD)

    Housing

    Material: Nylon 66 UL 94V-0

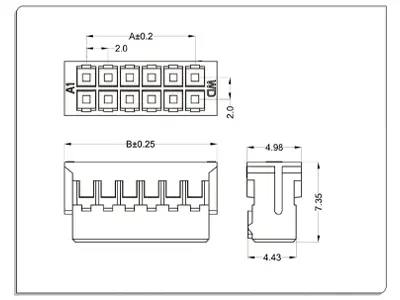

    5.Product description.7.jpg

    CKT Part No DIM A DIM B
    2*2 WB200A0-04 2 7
    2*3 WB200A0-06 4 9
    2*4 WB200A0-08 6 11
    2*5 WB200A0-10 8 13
    2*6 WB200A0-12 10 15
    2*7 WB200A0-14 12 17
    2*8 WB200A0-16 14 19
    2*9 WB200A0-18 16 21
    2*10 WB200A0-20 18 23
    2*11 WB200A0-22 20 25
    2*12 WB200A0-24 22 27
    - - - -
    2*22 WB200A0-44 42 47

    Wafer

    Material and Finish:

    Housing:LCP UL 94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated

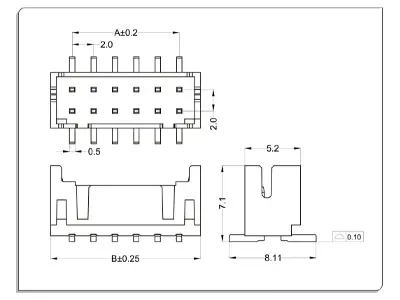

    5.Product description.8.jpg

    CKT Part No DIM A DIM B
    2*2 WB200AL-04 2 6
    2*3 WB200AL-06 4 8
    2*4 WB200AL-08 6 10
    2*5 WB200AL-10 8 12
    2*6 WB200AL-12 10 14
    2*7 WB200AL-14 12 16
    2*8 WB200AL-16 14 18
    2*9 WB200AL-18 16 20
    2*10 WB200AL-20 18 22
    2*11 WB200AL-22 20 24
    2*12 WB200AL-24 22 26
    - - - -
    2*22 WB200AL-44 42 46

    Material and Finish:

    Housing:LCP UL 94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated

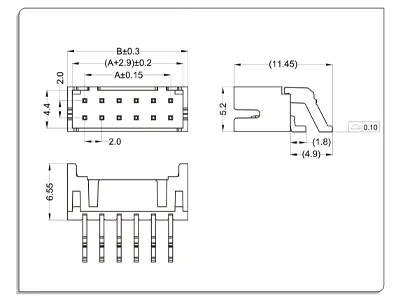

    5.Product description.9.jpg

    CKT Part No DIM A DIM B
    2*2 WB200DW-04 2 6
    2*3 WB200DW-06 4 8
    2*4 WB200DW-08 6 10
    2*5 WB200DW-10 8 12
    2*6 WB200DW-12 10 14
    2*7 WB200DW-14 12 16
    2*8 WB200DW-16 14 18
    2*9 WB200DW-18 16 20
    2*10 WB200DW-20 18 22
    2*11 WB200DW-22 20 24
    2*12 WB200DW-24 22 26
    - - - -
    2*20 WB200DW-40 38 42

    Housing

    Material: Nylon 66 UL94V-0

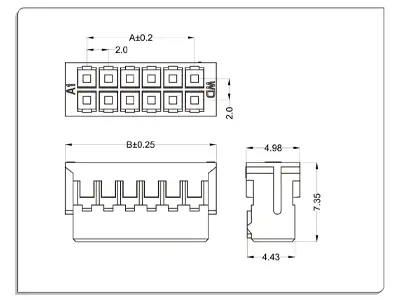

    5.Product description.10.jpg

    CKT Part No DIM A DIM B
    2*2 WB200D0-04 2 6
    2*3 WB200D0-06 4 8
    2*4 WB200D0-08 6 10
    2*5 WB200D0-10 8 12
    2*6 WB200D0-12 10 14
    2*7 WB200D0-14 12 16
    2*8 WB200D0-16 14 18
    2*9 WB200D0-18 16 20
    2*10 WB200D0-20 18 22
    2*11 WB200D0-22 20 24
    2*12 WB200D0-24 22 26
    - - - -
    2*20 WB200D0-40 38 42

    Wafer

    Material and Finish:

    Housing: Nylon 66 UL 94V-0 & Terminal: Brass Finish:Tin-plated & Gold-plated

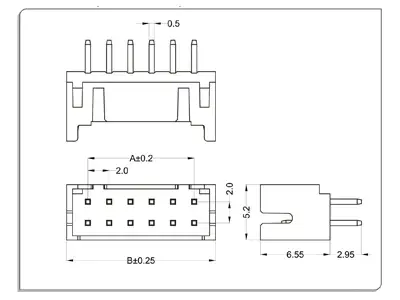

    5.Product description.11.jpg

    CKT Part No DIM A DIM B
    2*2 WB200DL-04 2 6
    2*3 WB200DL-06 4 8
    2*4 WB200DL-08 6 10
    2*5 WB200DL-10 8 12
    2*6 WB200DL-12 10 14
    2*7 WB200DL-14 12 16
    2*8 WB200DL-16 14 18
    2*9 WB200DL-18 16 20
    2*10 WB200DL-20 18 22
    2*11 WB200DL-22 20 24
    2*12 WB200DL-24 22 26
    - - - -
    2*20 WB200DL-40 38 42

    Material and Finish:

    Housing:Nylon 66 UL94V-0 & Terminal:Brass Finish: Tin-plated & Gold-plated

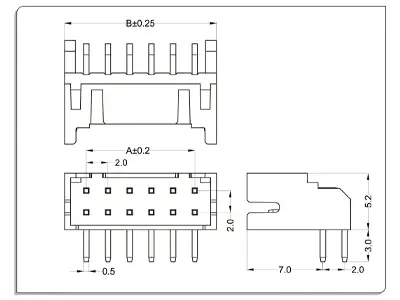

    5.Product description.12.jpg

    CKT Part No DIM A DIM B
    2*2 WB200DW-04 2 6
    2*3 WB200DW-06 4 8
    2*4 WB200DW-08 6 10
    2*5 WB200DW-10 8 12
    2*6 WB200DW-12 10 14
    2*7 WB200DW-14 12 16
    2*8 WB200DW-16 14 18
    2*9 WB200DW-18 16 20
    2*10 WB200DW-20 18 22
    2*11 WB200DW-22 20 24
    2*12 WB200DW-24 22 26
    - - - -
    2*20 WB200DW-40 38 42
