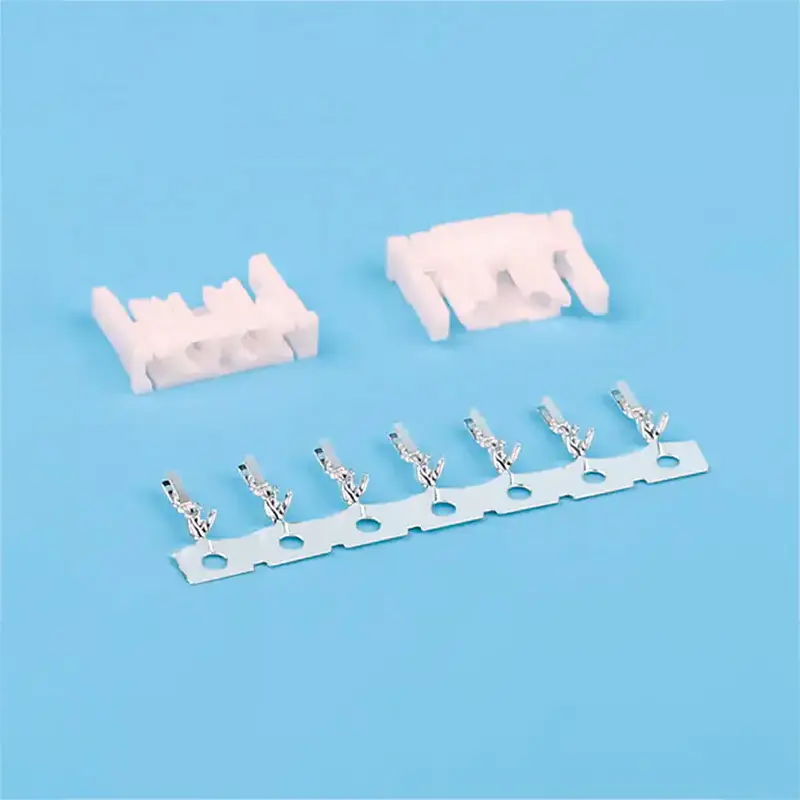

3.7-D Type Wire-to-Board Strip Connector

Product Advantages

1.Cost-Effective Installation: The connector adopts a unique design, making connections faster and more convenient, reducing installation time and costs, and improving production efficiency.

2.Customizable to Individual Needs: Customizable in terms of form factor, contact method, and color based on customer requirements, catering to personalized application needs, enhancing product flexibility and adaptability.

3.Improved Production Efficiency: Due to the fast connection feature of the connector, installation time can be reduced, production efficiency can be improved, and production costs can be lowered.

4.Excellent Electrical Performance: The connector exhibits good electrical performance, ensuring the quality and stability of signal transmission, avoiding signal attenuation and interference, and improving system performance.

5.Reliable Connection: The connector is made of high-quality materials and manufactured with precision to ensure stability and reliability, capable of withstanding prolonged use and frequent plugging and unplugging, providing reliable connections.

6.Wide Range of Applications: This connector is suitable for various electronic devices and communication equipment such as computers, mobile phones, tablets, network devices, etc., having a wide range of applications.

Specifications

Diagram	Specification
	1、CKT: 2Pin 2、Current rating: 2A AC/DC 3、Voltage rating(max): 500V, AC/IDC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Contact resistance:Initial value ≤20mΩ After environmental testing≤40mΩ 6、Insulation resistance: ≥1000MΩ 7、Withstand voltage: 1500VAC(rms) 8、Applicable wire: AWG #26 to #28

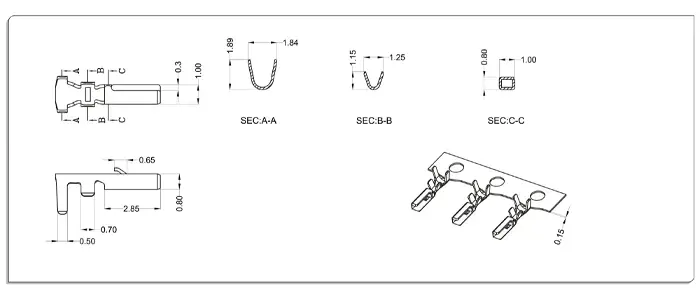

Product Parameter

Terminal: T=0.15mm

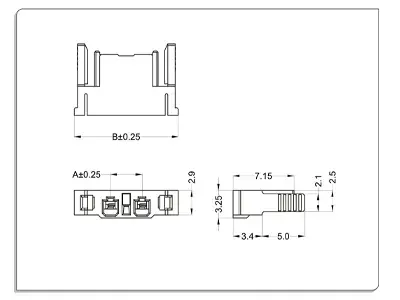

Product description

Housing

Material: Nylon 66 UL 94V-0
