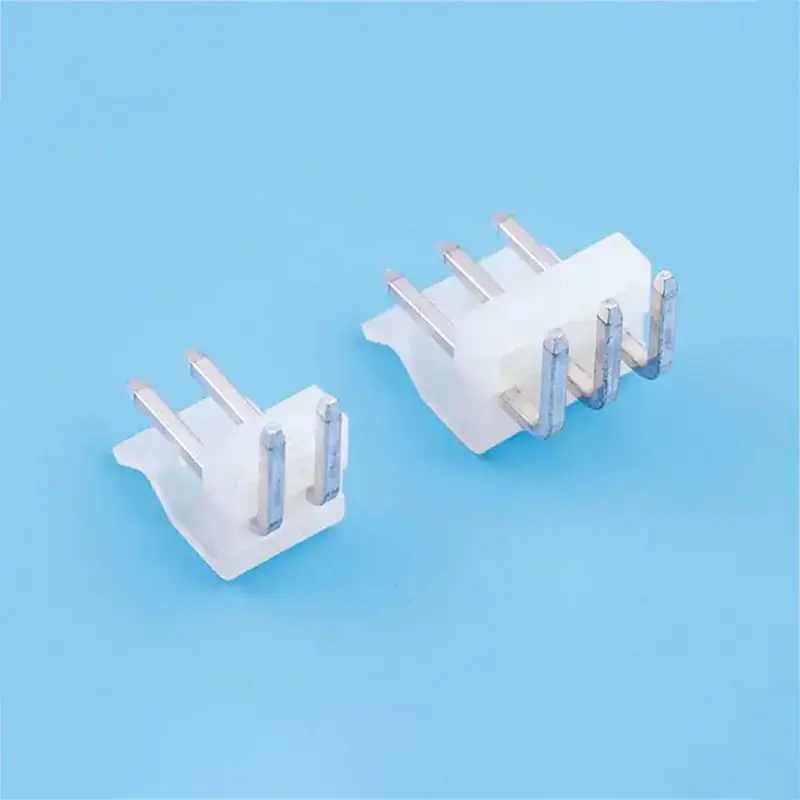

1.3.96 mm Pitch Wire-to-Board Strip Connector.jpg

3.96 mm Pitch Wire-to-Board Strip Connector

3.96 mm Pitch High Hardness Wear Resistance Wire-to-Board Strip Connector PCB Right Angle Pin Header Socket.This connector is suitable for connecting various electronic devices such as computers, communication equipment, industrial control equipment, etc., meeting the needs of different industries.

    Contact us
    Product Details

    Specifications

    Diagram Specification
    1、CKT: 2Pin to 16Pin
    2、Current rating: 7A AC/DC
    3、Voltage rating(max): 250V, AC/IDC
    4、Working Temperature: -25°C~+85°C,
    (Including temperature rise in applying electrical current)
    5、Contact resistance:Initial value ≤20mΩ
    After environmental testing≤30mΩ
    6、Insulation resistance: ≥1000MΩ
    7、Withstand voltage: 1500VAC(rms)
    8、Applicable wire: AWG #22 to #16
    9、Applicable PCB board thickness: 1.6mm to 2.0mm

    Mounting Measurement

    Straight Angle Right Angle


    Product description

    Wafer

    Material and Finish :

    Housing:Nylon 66 UL 94V-2 & Terminal:Brass Finish: Tin-plated & Gold-plated

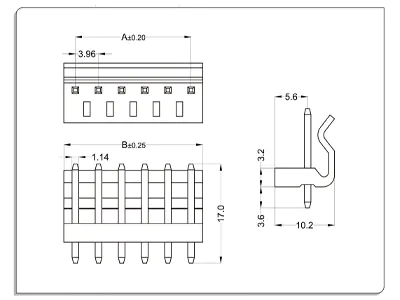

    4.Product description.1.jpg

    CKT Part No DIM A DIM B
    2 WT3960L-02 3.96 7.92
    3 WT3960L-03 7.92 11.88
    4 WT3960L-04 11.88 15.84
    5 WT3960L-05 15.84 19.8
    6 WT3960L-06 19.8 23.76
    7 WT3960L-07 23.76 27.72
    8 WT3960L-08 27.72 31.68
    9 WT3960L-09 31.68 35.64
    10 WT3960L-10 35.64 39.6
    11 WT3960L-11 39.6 43.56
    12 WT3960L-12 43.56 47.52
    - - - -
    16 WT3960L-16 59.4 63.36

    Material and Finish :

    Housing: Nylon 66 UL .94V-2 & Terminal:Brass Finish: Tin-plated & Gold-plated

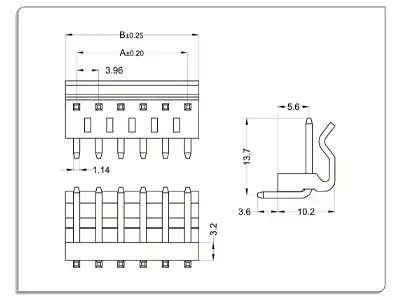

    4.Product description.2.jpg

    CKT Part No DIM A DIM B
    2 WT3960W-02 3.96 7.92
    3 WT3960W-03 7.92 11.88
    4 WT3960W-04 11.88 15.84
    5 WT3960W-05 15.84 19.8
    6 WT3960W-06 19.8 23.76
    7 WT3960W-07 23.76 27.72
    8 WT3960W-08 27.72 31.68
    9 WT3960W-09 31.68 35.64
    10 WT3960W-10 35.64 39.6
    11 WT3960W-11 39.6 43.56
    12 WT3960W-12 43.56 47.52
    - - - -
    16 WT3960W-16 59.4 63.36

    Material and Finish:

    Housing: Nylon 66 UL 94V-2 & Terminal:Brass Finish: Tin-plated & Gold-plated

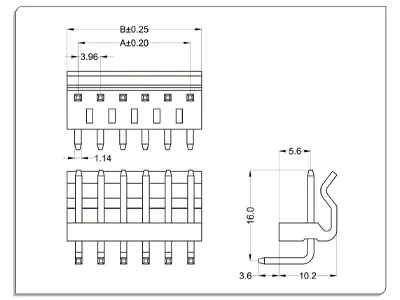

    4.Product description.3.jpg

    CKT Part No DIM A DIM B
    2 WT3960L-02 3.96 7.92
    3 WT3960L-03 7.92 11.88
    4 WT3960L-04 11.88 15.84
    5 WT3960L-05 15.84 19.8
    6 WT3960L-06 19.8 23.76
    7 WT3960L-07 23.76 27.72
    8 WT3960L-08 27.72 31.68
    9 WT3960L-09 31.68 35.64
    10 WT3960L-10 35.64 39.6
    11 WT3960L-11 39.6 43.56
    12 WT3960L-12 43.56 47.52
    - - - -
    16 WT3960L-16 59.4 63.36
