2.0mm Pitch
0102030405

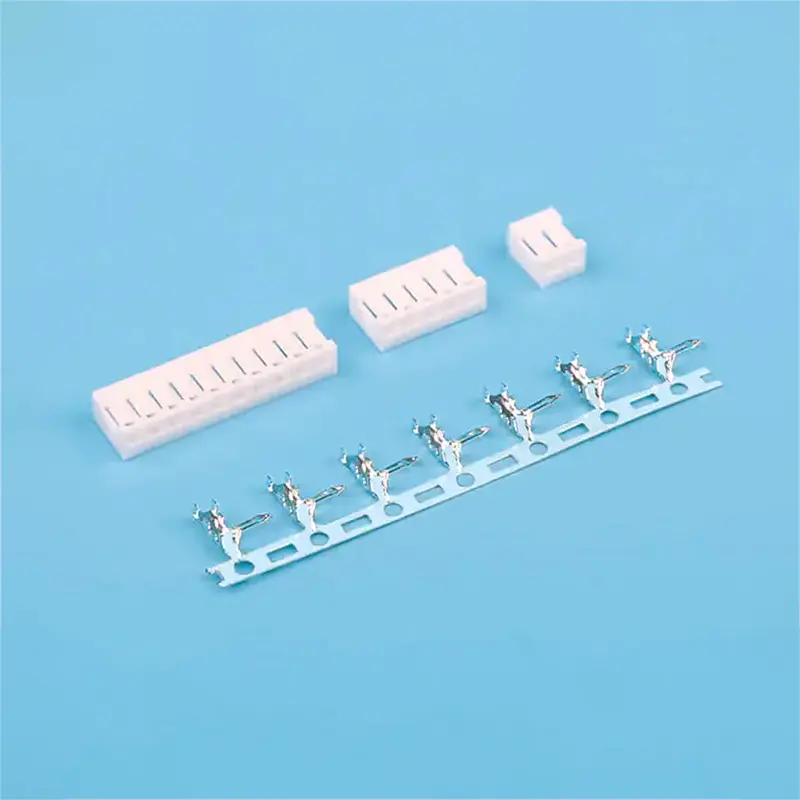

JC20/SAN2.0 Wire-to-Board Strip Connector
Specifications
| model | Diagram | Specification |
| JC20 Wire-to-Board Strip Connector |  |
1、CKT: 2Pin to 20Pin 2、Current rating: 0.7A AC/DC 3、Voltage rating(max): 50V, AC/DC 4、Working Temperature: -25°C~+85°C, (Including temperature rise in applying electrical current) 5、Insulation resistance: ≥1000MΩ 6、Withstand voltage :500VAC(rms) 7、Applicable wire: AWG #30 to #26 8、Applicable PCB board thickness: 1.6mm to 2.0mm |

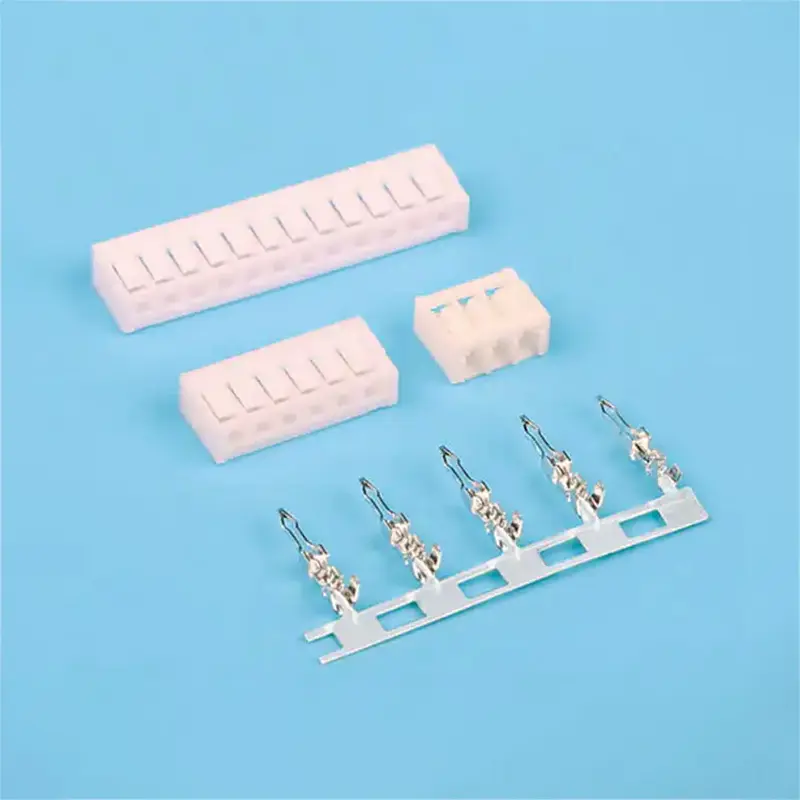

| SAN2.0 Wire-to-Board straight Connector |  |
Product Parameter

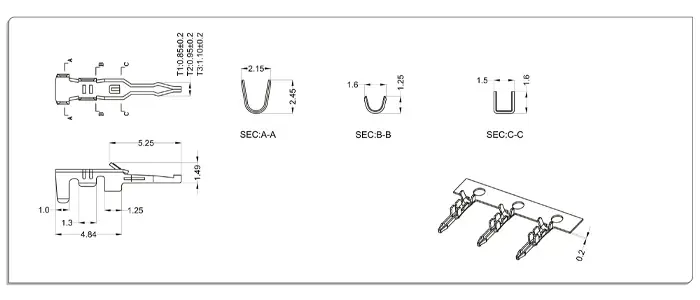

JC20 Terminal: T=0.2mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WTJC200-T0 | AWG#28~ #24 | 1.50mm MAX | phosphor bronze | Tin & Gold-plated |

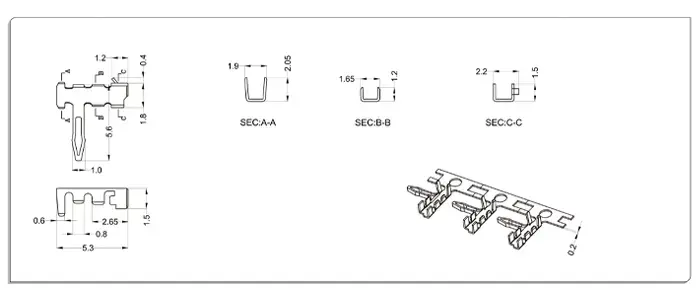

SAN2.0 Terminal: T=0.2mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WTSAN20-T0 | AWG#28~ #24 | 1.50mm MAX | phosphor bronze | Tin & Gold-plated |
Product description

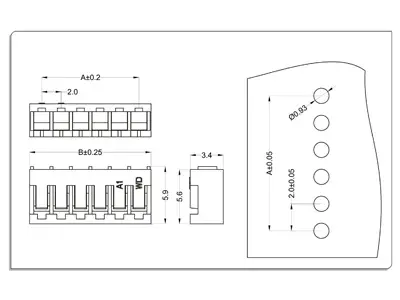

JC20 Housing
Material: Nylon 66 UI 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WTJC200-02 | 2 | 4.5 |
| 3 | WTJC200-03 | 4 | 6.5 |
| 4 | WTJC200-04 | 6 | 8.5 |
| 5 | WTJC200-05 | 8 | 10.5 |
| 6 | WTJC200-06 | 10 | 12.5 |
| 7 | WTJC200-07 | 12 | 14.5 |
| 8 | WTJC200-08 | 14 | 16.5 |
| 9 | WTJC200-09 | 16 | 18.5 |
| 10 | WTJC200-10 | 18 | 20.5 |
| 11 | WTJC200-11 | 20 | 22.5 |
| 12 | WTJC200-12 | 22 | 24.5 |
| - | - | - | - |
| 20 | WTJC200-20 | 38 | 40.5 |

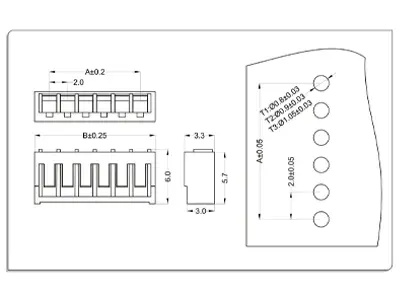

SAN2.0 Housing
Material: Nylon 66 UI 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WTSAN20-02 | 2 | 5.3 |
| 3 | WTSAN20-03 | 4 | 7.3 |
| 4 | WTSAN20-04 | 6 | 9.3 |
| 5 | WTSAN20-05 | 8 | 11.3 |
| 6 | WTSAN20-06 | 10 | 13.3 |
| 7 | WTSAN20-07 | 12 | 15.3 |
| 8 | WTSAN20-08 | 14 | 17.3 |
| 9 | WTSAN20-09 | 16 | 19.3 |
| 10 | WTSAN20-10 | 18 | 21.3 |
| 11 | WTSAN20-11 | 20 | 23.3 |
| 12 | WTSAN20-12 | 22 | 25.3 |
| - | - | - | - |
| 20 | WTSAN20-20 | 38 | 41.3 |
