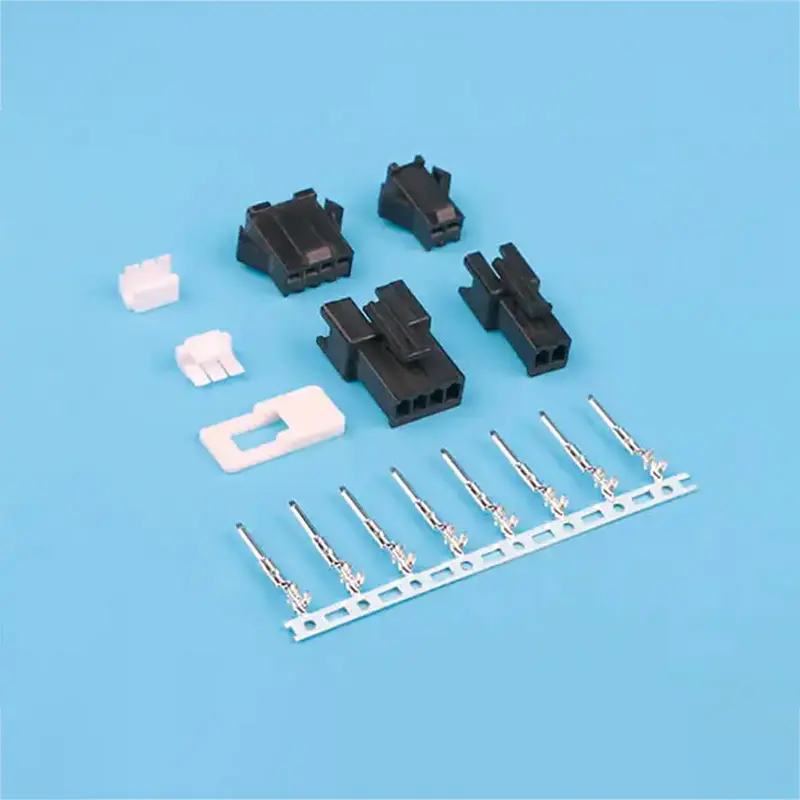

1.SM2.5 Wire-to-Board Strip Connector.jpg

SM2.5 Wire-to-Board Strip Connector

2.5mm pitch wire-to-board strip connector kit, durable interface, multi-pin arrangement, black, electronics diy, easy assembly；The connector adopts a standard 2.5mm Pitch design, compatible with mainstream board-to-board connectors in the market, allowing seamless connection with other devices.

    Contact us
    Product Details

    Specifications

    Diagram Specification
      1、CKT: 2Pin to 16Pin
    2、Current rating: 3A AC/DC
    3、Voltage rating(max): 250V, AC/IDC
    4、Working Temperature: -25°C~+85°C,(Including temperature rise in applying electrical current)
    5、Contact resistance:Initial value≤10mΩ
    After environmental testing≤20mΩ
    6、Insulation resistance: ≥500MΩ
    7、Withstand voltage: 1500VAC(rms)
    8、Applicable wire: AWG #28 to #22

    Mounting Measurement

    Mounting Measurement

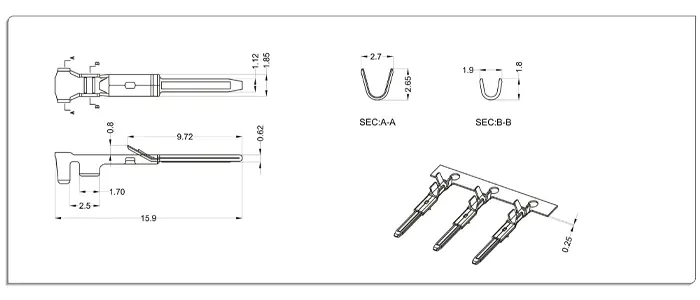

    Product Parameter

    Terminal: T=0.25mm

    4.Product Parameter.jpg

    Part No. Wire Range Insulation O.D Material Finish
    WT2501M-T0 AWG#28~ #22 1.80mm MAX phosphor bronze Tin & Gold-plated

    Product description

    Housing

    Material: Nylon 66 UL 94V-0

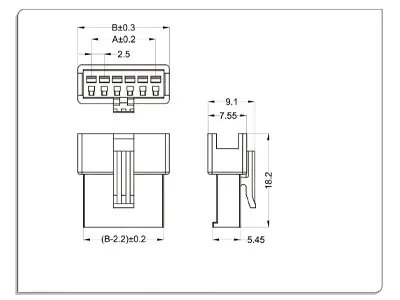

    5.Product description.1.jpg

    CKT Part No DIM A DIM B
    2 WT2501M-02 2.5 7.85
    3 WT2501M-03 5 10.35
    4 WT2501M-04 7.5 12.85
    5 WT2501M-05 10 15.35
    6 WT2501M-06 12.5 17.85
    7 WT2501M-07 15 20.35
    8 WT2501M-08 17.5 22.85
    9 WT2501M-09 20 25.35
    10 WT2501M-10 22.5 27.85
    11 WT2501M-11 25 30.35
    - - - -
    16 WT2501M-16 37.5 42.85

    Fitting

    Material: Nylon 66 UL94V-0

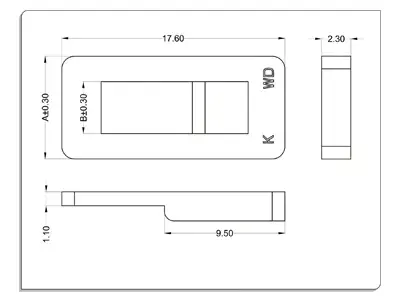

    5.Product description.2.jpg

    CKT Part No DIM A DIM B
    2 WT2501M-Y1 7.6 3.6
    3 WT2501M-Y2 8.1 4.1

    Fitting

    Material: Nylon 66 UL 94V-0

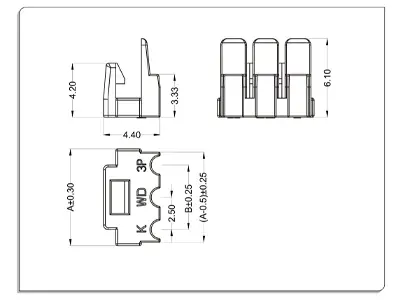

    5.Product description.3.jpg

    CKT Part No DIM A DIM B
    2 WT2501M-02 5 2.5
    3 WT2501M-03 7.5 5
    4 WT2501M-04 10 7.5
    5 WT2501M-05 12.5 10
    6 WT2501M-06 15 12.5
    7 WT2501M-07 17.5 15
    8 WT2501M-08 20 17.5
    9 WT2501M-09 22.5 20
    10 WT2501M-10 25 22.5
    11 WT2501M-11 27.5 25
    - - - -
    16 WT2501M-16 40 37.5

    Housing

    Material: Nylon 66 UL 94V-0

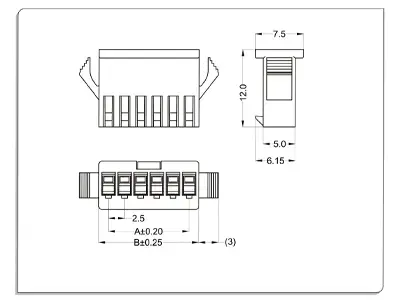

    5.Product description.4.jpg

    CKT Part No DIM A DIM B
    2 WT2501M-02 2.5 7.85
    3 WT2501M-03 5 10.35
    4 WT2501M-04 7.5 12.85
    5 WT2501M-05 10 15.35
    6 WT2501M-06 12.5 17.85
    7 WT2501M-07 15 20.35
    8 WT2501M-08 17.5 22.85
    9 WT2501M-09 20 25.35
    10 WT2501M-10 22.5 27.85
    11 WT2501M-11 25 30.35
    - - - -
    16 WT2501M-16 37.5 42.85

    Fitting

    Material: Nylon 66 UL 94V-0

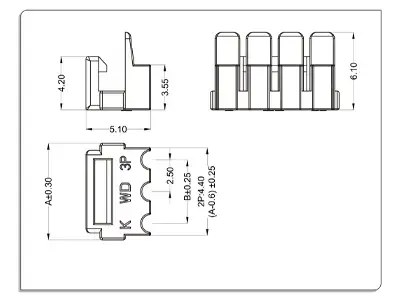

    5.Product description.5.jpg

    CKT Part No DIM A DIM B
    2 WT2502F-02 5 2.5
    3 WT2502F-03 7.5 5
    4 WT2502F-04 10 7.5
    5 WT2502F-05 12.5 10
    6 WT2502F-06 15 12.5
    7 WT2502F-07 17.5 15
    8 WT2502F-08 20 17.5
    9 WT2502F-09 22.5 20
    10 WT2502F-10 25 22.5
    11 WT2502F-11 27.5 25
    - - - -
    16 WT2502F-16 40 37.5
